Configuration files

In the zip distribution WaarpR66-X.Y.Z-dist.zip (available at Github for download), you will find an extra directory named: src/main/config where several examples files are located as: config-serverA.xml, config-serverB.xml. Other files like config-clientA.xml are for clients, and config-serverInitA.xml, OpenR66-authent-A.xml, limitConfiga.xml, *.rule.xml, certs/*.cer/*.jks/*.ggp are for initialization or password storage.

A detailed description of their contents can be found in Config OpenR66 Server, Config OpenR66 Client, Config OpenR66 Client with No Database, Config OpenR66 Client for Submit Only, Config OpenR66 Limits, Config OpenR66 Rule, Config OpenR66 Authentications and Config for OpenR66 SNMP support.

The first ones (config-ServerX.xml) specifies the general behavior for the OpenR66 Server:

• server names, ports, home directory and subdirectories, ssl key
• server admin name and password (for administrator access and shutdown function)
• server special configuration like threads number, timeout of connection, deleteOnAbort, usenio, fastmd5, blocksize
• server database configuration

The second one (config-clientX.xml) is a configuration file for OpenR66 Client:

• client names, home directory and subdirectories, optionally ssl key
• server special configuration like threads number, timeout of connection, deleteOnAbort, usenio, fastmd5, blocksize
• optionally server database configuration

The file config-serverInitC.xml is an example of how to instantiate the database with the correct values in it. The values are from:

• config-serverInitX.xml : host name and database access
• rules_directory where *.rule.xml files are: all information needed to process a rule (directories, actions on pre transfer, post transfer and error status).
• host_authent_file OpenR66-authent-A.xml (host name, address, ports and ssl support) and the associated *.ggp for password:
• limit_configuration_file limitConfiga.xml where session and global limit for bandwitdth are specified.

Steps

• Create keys for SSH and Passwords (see Config OpenR66 OpenSSL and WaarpPassword GUI project)
• Create configurations files (server configuration file, authentication configuration file, rule configuration file, snmp configuration file) for a server
• Create configurations files (client configuration file, authentication configuration file, rule configuration file) for a client
• Create the database using the ServerInitDatabase (see Commands detail)

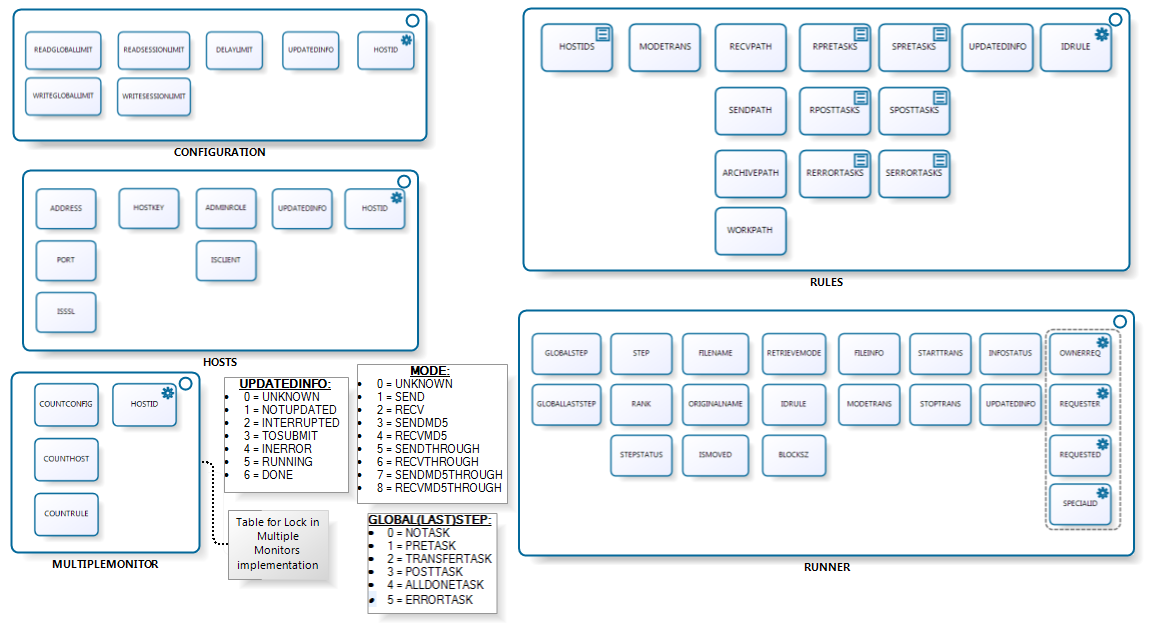

  A simplified picture of the OpenR66 Database schema is shown here:



• Make some tests for server using Message command to all declared interface (NOSSL and SSL) (see Commands detail)
